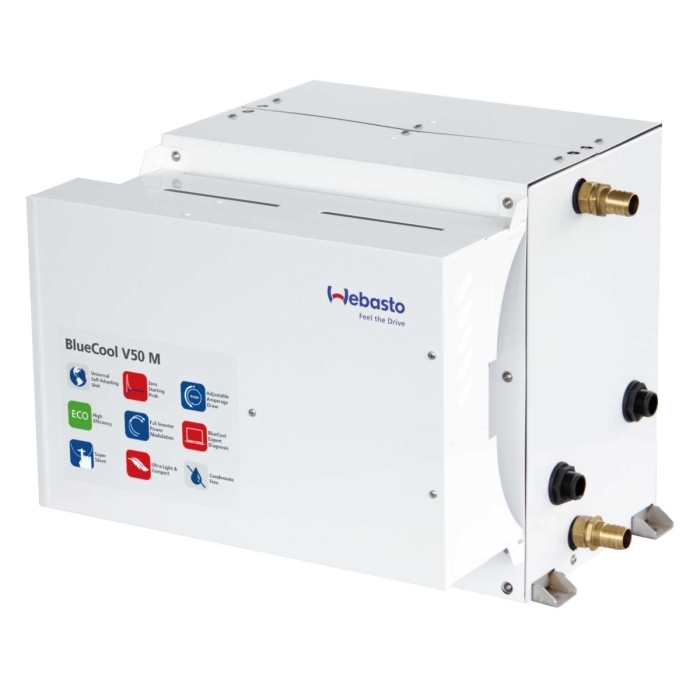

V50 M BlueCool Variable Speed Chiller, 230 volt | Webasto 2510598A
Special Price
$10,500.00
Regular Price
$15,000.00
SKU
Brand: WebastoQty In Stock: 2
WEBASTO-2510598A
This BlueCool V50 M variable speed chiller provides a cooling capacity of 8,500 to 50,000 BTU ensuring maximum comfort and minimal energy consumption. This unit operates on an inverter driven variable speed compressor which eliminates electrical peaks at startup and ensures smooth and silent operation throughout. The V-Series is compatible with 230 volts at 50 Hz and 240 volts at 60 Hz making it ideal for global cruising.
V50 M BlueCool Variable Speed Chiller, 230 volt | Webasto 2510598A is available to buy in increments of 1
| Warehouse | Available |
| Florida | 2 |
| Michigan | 0 |
| Ohio | 0 |
| Tennessee | 0 |
| Wisconsin | 0 |
- BlueCool V Series variable speed chiller air conditioning system with Reverse Cycle Heat
- 8,500 -50,000 BTU/hr Cooling Capacity
- 8,500 -50,000 BTU/hr Heating Capacity
- Compatible with 230 volts at 50 Hz and 240 volts at 60 Hz
- Line Fuse protection: Inverter and PC Board (Max 25A), Cold Water Pump (Max 16 amps), Sea Water Pump (Max 16 amps) Rated
- Current: 2.5-19 amps (max of 21 amps)
- Maximum draw in Eco 1 Mode: 2.5-10 amps (max of 14 amps)
- Maximum draw in Eco 2 Mode: 2.5-6 amps (max of 8 amps)
- Max Starting Current: 2.5 amps
- Cold Water connections: 1 inch Male BST
- Sea Water connections: 1 inch Male BST
- Optional Hose Nipple 1inch Female BST to 1 inch hose barb (WBCL009358)
- Minimum cold water flow rate 9.25 gallons per minute (555 GPH) or 35 l/min
- Minimum sea-water flow rate 10.04 gallons per minute (603 GPH) or 38 l/min
- 1365 GPH Pump recommended for cold water loop
- 1825 GPH Pump recommended for sea-water loop
- Max Permissible ambient temperature: 140° Fahrenheit/60° Celsius
- Operating Pressure: High pressure 575 - 475 psi (40-33 bar), Low pressure: 60 - 70 psi (4-5 bar)
- Length of wiring harness from chiller to electrical box: 2 meters (6.56 feet)
- R410A Refrigerant (875 grams)
- Minimum sea water temperature in heating mode: 42.8° Fahrenheit/6° Celsius
- Maximum sea water temperature in cooling mode: 95° Fahrenheit/35° Celsius
- Chiller Unit: 20.08 inches (510mm) Height x 22.32 inches (567mm) Width x 13.39 inches (340mm) Depth
- Chiller Unit with Electrical Box: 20.08 inches (510mm) Height x 23.9 inches (607mm) Width x 20.87 inches (530mm) Depth
- Electric Box: 18.31 inches (465mm) Height x 22.05 inches (560mm) Width x 7.48 inches (190mm) Depth
- Chiller Unit weight: 103.62 pounds/47 kg
- Electric box weight: 33.07 pounds/15 kg
- Combined weight: 136.69 pounds/62 kg
- Installation of a Seawater strainer is mandatory between the seacock and Pump (sold separately)
- Electric box features a USB diagnosis port enabling qualified tech direct access via the unique BlueCool Expert Tool. Expert tool offers access to stored fault codes by hourly runtime which will allow a qualified technician to accurately and efficiently troubleshoot any problems that may arise.
- Compatible with MyTouch display (WBCL151002C)
- MyTouch control is compatible with the popular Vimar bezels allowing you to maintain a consistent style throughout your yacht (Vimar Eikon, Eikon EVO, Plana, and Bitcino Axolute)
- Optional BlueCool Connect System allows for remote operation and monitoring via the BlueCool Connect application: WEBASTO-2510219B
- This unit is equipped with High Pressure and Low Pressure Service ports
- Replaces Webasto WBCL1203001
| Manufacturer Part No. | 2510598A |
|---|---|
| Shipping/Dimensional Weight | 162.000000 |
| Actual Weight | 137 |
| Brand | Webasto |
| Availability | In Stock |
| Model | BlueCool V |
| Frequency | 50/60 Hz |
| Cooling BTU | 50,000 |
| Duct Ring | Not Applicable |
| Width | 22.3 Inches |
| Depth | 13.4 Inches |
| Height | 20.1 inches |
| Type | Chiller |
| Ships free when order qualifies | No |
| Hazmat Fee | No |
