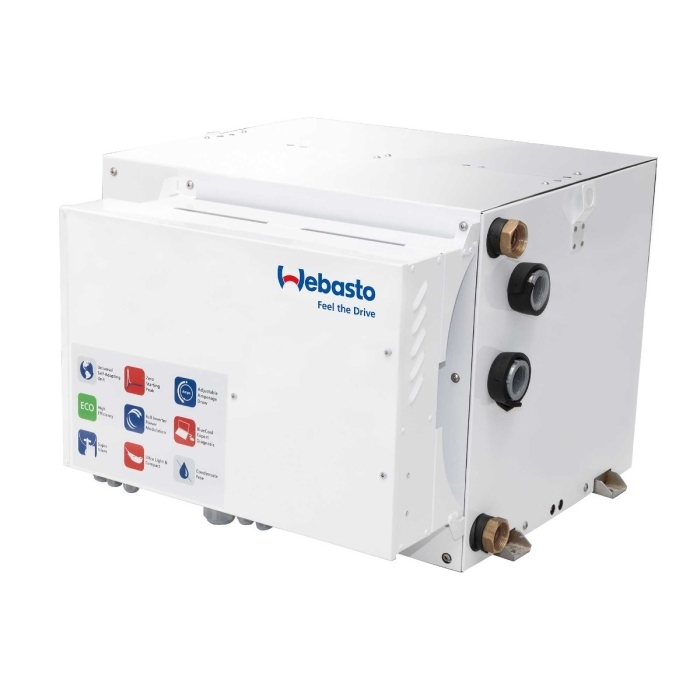

V77 T BlueCool Variable Speed Chiller, 230 volt | Webasto 2510596A
Special Price
$15,050.00
Regular Price
$21,500.00
SKU
Brand: WebastoQty In Stock: 1
WEBASTO-2510596A
This BlueCool V77 T variable speed chiller provides a cooling capacity of 8,500 to 77,000 BTU ensuring maximum comfort and minimal energy consumption. The V-Series units operate on inverter driven variable speed compressors which eliminates electrical peaks at startup and ensures smooth and silent operation throughout. The V-Series is compatible with 230 volts at 50 Hz and 240 volts at 60 Hz making it ideal for global cruising.
V77 T BlueCool Variable Speed Chiller, 230 volt | Webasto 2510596A is available to buy in increments of 1
| Warehouse | Available |
| Florida | 1 |
| Michigan | 0 |
| Ohio | 0 |
| Tennessee | 0 |
| Wisconsin | 0 |
- 8,500 -64,000 BTU/hr cooling capacity
- 8,500 -64,000 BTU/hr heating capacity
- 230 volts at 50/60 Hz
- Line fuse protection: inverter and PC board (maximum 25 amp), cold water pump (maximum 16 amp), sea water pump (maximum 16 amp), compressor 2 (maximum 16 amp)
- Rated current: 2.5-30.5 amp (maximum of 32.5 amp)
- Maximum draw in Eco 1 mode: 2.5-19 amp (maximum of 21 amp)
- Maximum draw in Eco 2 mode: 2.5-10 amp (maximum of 14 amp)
- Maximum draw in Eco 3 mode: 2.5-6 amp (maximum of 8 amp)
- Maximum starting current: 2.5 amp
- Cold water connections: 1-1/4 inch female BST
- Sea water connections: 1-1/4 inch female BST
- Minimum cold water flow rate 13.74 gallons per minute (825 GPH) or 52 l/min
- Minimum sea-water flow rate 15.06 gallons per minute (904 GPH) or 57 l/min
- 1825 GPH pump recommended for cold water loop
- 1825 GPH pump recommended for sea-water loop
- Maximum permissible ambient temperature: 140 degrees Fahrenheit/60 degrees Celsius
- Operating pressure: high pressure 575 - 475 psi (40-33 bar), low pressure: 60 - 70 psi (4-5 bar)
- Length of wiring harness from chiller to electrical box: 2 meters (6.56 feet)
- R410A refrigerant (875 + 770 grams)
- Minimum sea water temperature in heating mode: 42.8 degrees Fahrenheit/6 degrees Celsius
- Maximum sea water temperature in cooling mode: 95 degrees Fahrenheit/35 degrees Celsius
- Chiller unit: 20.08 inch (510mm) Height x 28.35 inch (720mm) Width x 22.05 inch (560mm) Depth
- Chiller unit with electrical box: 20.08 inch (510mm) Height x 29.93 inch (760mm) Width x 29.53 inch (750mm) Depth
- Electric box: 18.31 inch (465mm) Height x 22.05 inch (560mm) Width x 7.48 inch (190mm) Depth
- Chiller unit weight: 198.42 lbs/90kg
- Electric box weight: 33.07 lbs/15kg
- Combined weight: 231.49 lbs/105kg
- Installation of a seawater strainer is mandatory between the seacock and pump (sold Separately)
- Electric box features a USB diagnosis port enabling qualified tech direct access via the unique BlueCool Expert Tool. Expert tool offers access to stored fault codes by hourly runtime which will allow a qualified technician to accurately and efficiently troubleshoot any problems that may arise.
- Compatible with MyTouch display (WBCL151002C)
- MyTouch control is compatible with the popular Vimar bezels allowing you to maintain a consistent style throughout your yacht (Vimar Eikon, Eikon EVO, Plana, and Bitcino Axolute)
- Optional BlueCool Connect System allows for remote operation and monitoring via the BlueCool Connect application: WEBASTO-2510219B
- This unit is equipped with high pressure and low pressure service ports
| Manufacturer Part No. | 2510596A |
|---|---|
| Shipping/Dimensional Weight | 257.000000 |
| Actual Weight | 232 |
| Brand | Webasto |
| Availability | In Stock |
| Model | BlueCool V |
| Frequency | 50/60 Hz |
| Cooling BTU | 77,000 |
| Duct Ring | Not Applicable |
| Width | 29.9 Inches |
| Depth | 22 Inches |
| Height | 20.1 inches |
| Type | Chiller |
| Ships free when order qualifies | Yes |
| Hazmat Fee | No |
